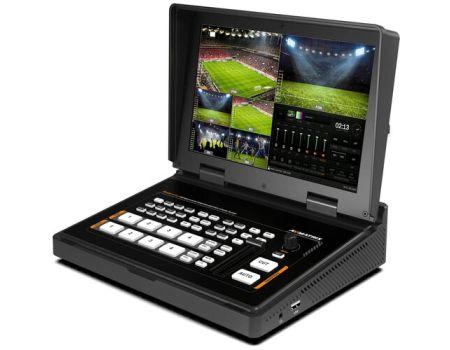

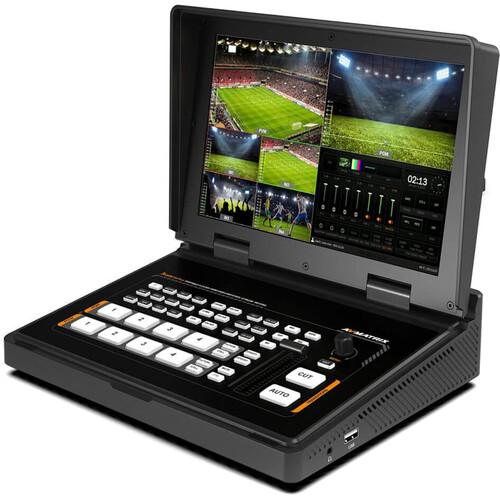

AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display

AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display

10.1" FHD IPS Screen
A built-in 10.1-inch FHD IPS screen that clearly displays PVW, PGM, audio bar, multiview, clock, and menu settings.

Configurable Output
With the four auto-detected inputs and three scaling outputs, the video switcher is quite flexible to connect with a variety of devices and signals. Besides, all the three outputs can be configured to IN1-4, PVW, PGM, Clean PGM, Color Bar and Multiview out to meet your various application needs.

Live Stream via Ethernet
The LAN port supports IP streaming transmission through the RTMP, SRT protocol, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.

USB Capture For Streaming
The USB type-C can be used as a webcam to capture video & audio and stream to various softwares & platforms, such as OBS, VMIX, ZOOM, Teams, Skype and VLC. It is compatible with Windows, Linux, and Mac.

Features:

• 10.1 inch FHD IPS LCD display
• 2 xHDMI & 2 x3G-SDI inputs, support auto-detected
• 2 xHDMI PGM output,1 xHDMI multiview out, 1 xUSB type-C output
• RTMP/SRT stream & USB disk/ SD card record
• AUX output configurable and assignable
• USB for capturing and streaming on PC
• Upstream key: Luma key, Chroma key, PIP x2/ POP
• Downstream key and LOGO overlay
• T-bar/ Auto/ Cut transitions; various effects: WIPE(11 x3patterns) / MIX/ DIP
• Audio mixer: 2 xHDMI, 2 xSDI embedded audio and 2-Ch MIC/line in; audio delay available
• Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
• Customer configuration import andexport
• FTB/ MUTE/ STILL/ GPIO for tally
