Introducing ATEM Constellation HD, the world's most powerful HD live production switcher! These incredibly powerful HD a massive 4 M/E model with 40 inputs! Plus each SDI input features a full standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma keyers, media players, multiviews, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 4 M/E ATEM Advanced Panel!
Seriously Advanced Broadcast Power
ATEM Constellation HD switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control. 4 M/E model even includes RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

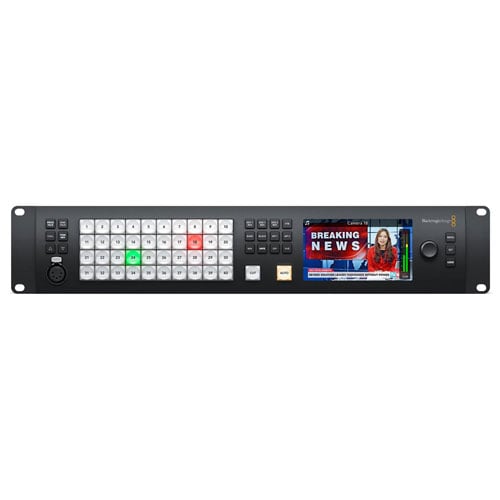

ATEM 4 M/E Constellation HD
The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.
Designed for Massive Live Events!
ATEM Constellation HD switchers are ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage! Even live sports benefit from the huge number of inputs and DVEs let you build multi-layer compositions to cover the action. The fastest way to produce programming is live! With powerful internal graphics and lots of ATEM advanced chroma keyers, you get everything you need for complex program production. ATEM Constellation is also perfect for house of worship programming as it's big enough to allow professional results, but it's very simple to learn so it's easy to train a volunteer crew!
True Broadcast Style Mix Effects Switching
ATEM Constellation HD uses a professional "program/preview" style operation, which is the exact same way large broadcasters use live production switchers. This means you are using the same type of switcher used by the television industry. Both the free ATEM Software Control and the optional hardware ATEM Advanced Panels will allow program/preview style switching. This means you can select a source on the preview bus to ensure it's correct before pushing the CUT or AUTO button to switch it on air. This 2 step program/preview process means far fewer mistakes! Program/preview operation means ATEM Constellation is the best solution for training students for a career in broadcast television!
Full Front Panel Control
With a control panel built into the front panel, you can simply walk up and operate the ATEM Constellation at any time. ATEM Constellation HD has similar features to ATEM Mini, so it's a fantastic upgrade when you need a bigger switcher! Plus the front panel control buttons are the same premium type used on full sized panels so they are extremely reliable. You can even control keyers, media and fade to black from the front panel! There is an industry standard 5 pin talkback headset connector on the front panel, with controls for talkback control. Plus the front panel LCD and menu buttons also allow almost every single operational feature of the switcher to be accessed!
Up to 40 Standards Converted 3G-SDI Inputs!
The ATEM Constellation HD family features models that have up to 40 independent 3G-SDI inputs, with each input featuring its own dedicated up and cross converter. That means it's possible to convert any 1080p input source to the video standard of the switcher! That means you could have each switcher SDI input running a different television standard and all the inputs will just work! On the ATEM 4 M/E Constellation HD model, you can even loop out audio channels 1, 2, 3 and 4 from SDI inputs 1 to 30 to the two MADI digital audio outputs, so you can hand off the switcher input audio to an external audio engineer for mixing.
Up to 24 3G-SDI Outputs
The ATEM Constellation HD family have a massive number of fully independent 3G-SDI outputs. 4 M/E model has a massive 24 x 3G-SDI outputs. These SDI outputs are very powerful because you can independently route any SDI input or any internal source to each SDI output. That's perfect for running independent feeds to stage screens, master recorders and streaming processors. Or use the SDI outputs for ISO recorders, where each deck will get a resynchronized switcher input with matching timecode. All SDI outputs contain program audio, RP-188 timecode, SDI camera control, tally and talkback.
USB Webcam Output for Video Software
To help with live streaming, the USB-C connection on ATEM Constellation HD operates as a webcam source. That means you can plug into a computer and get working with any video software! The software is tricked into thinking the ATEM Constellation HD is a common webcam, but it's really a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Zoom, Microsoft Teams or Skype for a new way to do presentations with a professional multi camera broadcast quality style! The ATEM Constellation HD webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster and more!
Choose from Hardware or Software Control Panels
All ATEM switchers feature a wide range of hardware and software control options, plus it's possible to share control panels between all ATEM models for different events. Included with ATEM Constellation HD is a free software based control panel for Mac and Windows. The software connects to the switcher via Ethernet or USB and you can control the switcher, upload media, mix audio and control cameras. Then, when you need more power, you can add an ATEM Advanced Panel for professional switching or an ATEM Camera Control Panel for controlling cameras. There's even an ATEM developer SDK so you can build your own custom automation control solution!
Includes Multiview with Labels, Tally and Meters
The built in multiview lets you monitor multiple sources on a single monitor. The 4 M/E model has 4 independent multiviews, plus all internal video sources can be routed to any view. All multiviews are fully customizable and can be independently set to 4, 7, 10, 13 or 16 simultaneous views. Massive 64 views across 4 monitors with the 4 M/E model! You can add the tally border plus source label and VU meters as an overlay on each view. Plus a red and green border will show tally on each view, so you know what sources are on air.
ATEM 4 M/E Constellation HD features 4 HD multiview outputs so you can see up to 64 different views from cameras, program and preview outputs, and more spread across 4 screens!
Broadcast Transitions, DVE, Stingers and More!
ATEM Constellation HD includes a wide range of broadcast quality native transitions such as mix, dip, wipe, and more. All transitions can be customized in the system control menus with adjustments for border color, border width, position, direction and a lot more! The ATEM Constellation switcher includes a powerful digital video effects processor for DVE transitions, which can be used to squeeze the current picture off screen revealing a new video under it. The DVE can even be used to create graphic wipe transitions. To eliminate errors, ATEM Constellation HD features a preview transition feature so you can setup your transitions before you switch it on air!
Built in DVE for Video Effects
ATEM Constellation features independent DVEs, that let you reposition graphics & create picture in picture compositions. You get amazing quality & the DVE supports position, resize and scale, all in real time. The DVE lets you create professional picture in picture effects with customizable 3D borders, shadows and lighting. DVEs can also be used to create amazing DVE transitions with squeeze and swoosh effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions! 4 M/E models include SuperSource processors for even more DVEs!
Professional Broadcast Talkback
To keep crews working as a single creative team, ATEM Constellation features built in talkback. Talkback supports a 5 pin XLR headset connector, plus a rear mounted RJ12 connector for interfacing with industry standard talkback systems such as ClearCom or RTS. You get full talkback control including program and engineering loops, sidetone control for hearing the headset mic into the headphones and program mix. ATEM Constellation HD also supports SDI talkback that uses SDI channels 15 and 16 for 2-way communication with Blackmagic Design cameras. You can even use channels 13 & 14 for engineering talkback. It's even possible to mix the talkback mic into the program audio for voiceovers!
Internal Media for Stills and Motion Graphics
The built in media pool stores broadcast quality RGBA graphics and animations that can be played back instantly by the 2 or 4 media players. Media players simply appear as additional input sources on the ATEM Constellation HD, so you don't have to use extra SDI inputs for graphics. The built in media pool holds graphics for use with the media players & the 4 M/E model can hold 60 stills & 600 frame animations
