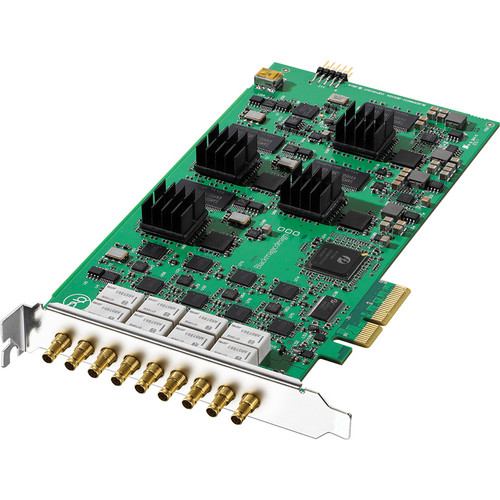

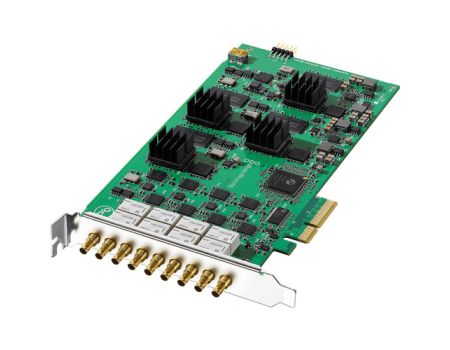

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback
- Adds 4 SDI Inputs / Outputs
- Broadcast Grade SDI Capture/Playback
- Simultaneous Capture / Output
- 8/10-bit SD / HD Recording and Playback
- Avoids Generational / Compression Loss
- Low SDI Jitter in Cables
- 4 PCIe Connections for Low Latency
- Transfer Rate - 10Gbps
- Instant Switch SD / HD Modes
Blackmagic Design DeckLink Quad is used to add 4 SDI inputs and outputs for media play-out servers and real-time processors. Offering broadcast grade multi-channel SDI capture and playback, the DeckLink Quad provides the operation capabilities of 4 completely independent capture cards onto a single PCI express card with bypass relays, watchdog timer, black burst, and tri-level common genlock for locking to sources of any frame rate.
Allowing you to create custom software and workflows, the BDLKDVQD DeckLink Quad card provides you power to work without limitations. It also allows you to add titles, resizing, de-interlacing, and converting formats on multiple streams, while simultaneously allowing you to capture and output the final result.
Featuring 8/10-bit SD and HD recording and playback in YUV 4:2:2, the DeckLink Quad provides best quality pictures ideal for use in live broadcast and post production works by avoiding any generational or compression loss. Featuring low SDI jitter in long distance transmissions cables and 4 PCIe connections for low latency, it provides output at a transfer rate of 10Gbps and allows instant switch between a SD and HD modes.
Allowing connection of up to 16 independent SDI devices which can be configured in any input/output configuration, the card supports up to 8 channels of uncompressed SDI embedded audio and Dolby digital pass through that provides high quality sound output.
The DeckLink Quad offers a wide range of features allowing you to use custom made option to suit your needs, and also includes a built-in keyer for live overlay of graphics into production switchers. It can be used to connect to SDI enabled VTR such as Digital Betacam, HDCAM SR, XDCAM, D5, DVCPRO HD, etc with zero latency for instant response. Offering compatibility with Mac OS X, Windows 7, or 64-bit Linux computers, it includes a media express application which provides timecode accurate capture and play out of uncompressed QuickTime, AVI, and DPX files.
Advanced Media is BLACKMAGIC DESIGN authorized reseller. Contact Advanced Media Dubai for Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback
Inputs/Outputs: 4 SDI
Record/Play Format: 8-bit and 10-bit SD and HD in YUV 4:2:2
Compatible With: Mac OS X, Windows 7, or 64-bit Linux computers
Blackmagic Design DeckLink Quad
