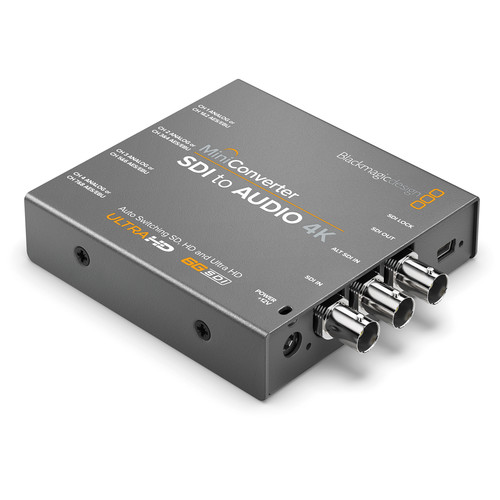

Blackmagic Design Mini Converter SDI to Audio 4K

Blackmagic Design Mini Converter SDI to Audio 4K

Add to Wish List
  • De-Embeds Audio from SDI Signal
  • Single Link 6G-SDI Input
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input
  • 4x 1/4" Audio Output Jacks
  • 4 Analog or 8 AES/EBU Audio Channels

Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source.

Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.

Advanced Media is BLACKMAGIC DESIGN authorized reseller. Contact Advanced Media Dubai for Blackmagic Design Mini Converter SDI to Audio 4K

More Information
SPECS:

SDI Video Input 1 x SD/HD/3G/6G-SDI
1 x SD/HD/3G/6G-SDI-SDI redundant input
SDI Video Output 1 x SD/HD/3G/6G-SDI
Audio Output 4 x 1/4" jacks
4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio
Multi-Rate Support Auto detection of SD, HD, 2K, UHD, and 4K signals
Reclocking Yes
Format Support SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25

HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25

UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 23.98/24/25/29.97/30
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates Switchable between SD, HD, 3G, and 6G-SDI
SDI Auto Switching Automatically detects SD, HD, 3G, or 6G-SDI
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling 24-bit, 48 kHz
SDI Color Precision 4:2:2, 4:4:4
SDI Color Space YUV, RGB
Settings Control DIP switches or USB software for Mac OS X and Windows
Firmware Upgradeable Via USB 2.0
Power Supply 12 VDC
