Blackmagic Design Teranex AV

Teranex Standards Converters
Mandated by broadcasters everywhere, Teranex is the world's most trusted name in standards converters!. Teranex converters are the ultimate SD, HD and Ultra HD standards converters and give you the quality and speed mandated by broadcasters worldwide. You can choose from models that give you up to a massive 1089 conversions, a wide range of broadcast connections, low latency processing, HDMI loop through and more! You get up, down, cross and standards conversions between virtually all SD, HD and Ultra HD formats and frame rates, including 3:2 cadence removal and insertion!

Featuring advanced patented algorithms, Teranex converters give you visually transparent, high quality conversions in full 10-bit quality, complete with audio, closed captions, timecode and more!

Convert Anything to Anything
More real time conversions so you'll be ready for anything!
Whether you're out in the field or in the studio, you never know what kind of video format you're going to get or which video format you're going to have to provide. Teranex converters give you so many realtime conversions that you'll be ready for anything at anytime! Convert incoming feeds from overseas, use them in front of older broadcast decks to ensure they always receive the correct signal or carry them in broadcast trucks so you'll be ready to work with anything that comes your way! With Teranex converters you can even convert SD to HD or Ultra HD in real time and then display it on massive outdoor LEDs or digital signs at live concerts or sporting events!

1089 Conversions
More SD, HD and Ultra HD up, down and standards conversions!
Teranex Express and Teranex AV can perform 1089 different conversions between SD, HD and Ultra HD in real time with visually transparent results that are so good you won't be able to see a difference from the original! The incredible power of Teranex processing includes up and down conversions, cross conversions and standards conversions with cadence detection, removal and insertion, optical quality scaling and more. Conversions retain timecode, ancillary data including closed captioning, 16 channels of audio with support for remapping and up to 1 second delay and perfect frame synchronization so your video is immediately ready for editing or broadcast.

Advanced HDMI Processing
Convert HDMI to SDI without additional hardware!
With Teranex AV you also get HDMI input, loop through and outputs for the ultimate in flexibility at live events! That means you can do HDMI to SDI conversions without needing external adapters or conversion equipment! Regardless of your input format, you can loop out via HDMI to send the signal to a big screen projector while simultaneously converting and sending the signal to downstream equipment likes decks and monitors. You can even take the audio from AES, analog and RCA HiFi inputs and embed it into both HDMI and SDI during the conversion process!

Low Latency for Live Conversions
Convert and output signals in milliseconds!
Teranex AV offers very low latency for such complex conversions, making them perfect for use in live production and events! With latency as low as 67ms, you can use Teranex AV at live concerts and other events to project live cameras onto massive screens in the venue. The low latency means people such as speakers, ministers or musicians can be projected onto screens in synchronization with the live event. Imagine, seeing a close up of a virtuoso pianist as their fingers fly across the keys on a big screen projector in sync with the live performance!

Still Store
Perfect for storing and displaying logos!
The built in still store on Teranex AV can capture a video frame and retain it in memory even when you turn the power off. You can capture a still at any resolution so it matches your projection or output settings. That makes it perfect for saving and then displaying corporate logos between presenters at conferences or for outputting sponsor logos at concerts and events between acts. With built in resynchronization, you'll always get clean switches between the still and your live feeds for professional looking presentations!

Freeze Frame
Hold any frame on screen until you're ready to switch outputs!
Teranex AV can also temporarily hold any current frame on the screen until you switch to another video output, a black frame or the still store. This makes Teranex AV ideal for conferences and events where you might need to make a change without the audience seeing it on screen. For example, you can hold on a slide while the presenter makes changes to their presentation in the background. The freeze frame and still store on Teranex AV are great features that let you always have something to show on screen while you switch over to the next presentation!

Teranex Quality
Amazing detail, sharpness and clarity
Teranex converters feature advanced patented algorithms that allow for the processing of millions of pixels simultaneously in X/Y positions and between video frames, so you get true super computer imaging power! You get full 10-bit image processing, extremely high quality de-interlacing and optical quality scaling. That means your video is converted in real time with amazing detail, sharpness and clarity. That's why Teranex conversions are often indistinguishable from the original source video!

Optical Scaling and Sub-Pixel Processing
Incredible conversions between SD, HD and Ultra HD!
Teranex converters can perform up and down conversions between NTSC or PAL SD, 720 or 1080 HD and Ultra HD. They feature a wide range of aspect ratio options and real time, optical quality scaling algorithms that simulate an optical zoom. Sub-pixel processing and multi-directional diagonal filters are also used to eliminate "jaggies." That means you get the cleanest looking conversions and images retain as much detail and clarity as possible!

High Quality De-Interlace
Patented PixelMotion technology and multi direction filtering
Teranex's proprietary and patented PixelMotion de-interlacing algorithms create perfect progressive frames for conversion by adjusting the aperture on a pixel-by-pixel basis. That means you get improved image quality because the vertical resolution is maintained and source detail is preserved!

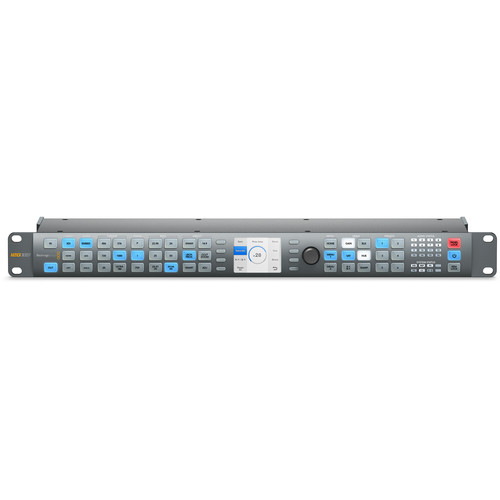

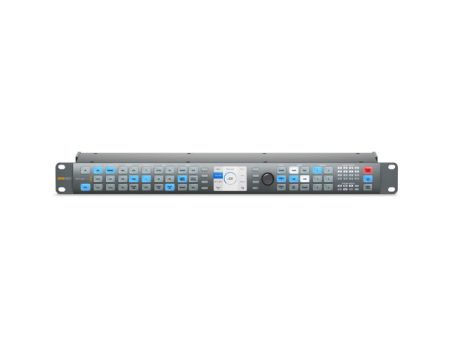

Familiar Design Advanced Teranex control panel
Teranex converters have all of the controls you need at your fingertips. The built in LCD monitor lets you easily navigate menus and see source format and frame rate with live video, so you don't have to use an external monitor. With an elegant machined metal front panel, its compact 1RU size and built in international power supply, Teranex converters not only look great in your studio, but are also perfect for portable racks and outside broadcast vehicles.

Advanced Connections
Broadcast quality connections for 24/7 reliability
Teranex AV features 12G-SDI and HDMI 2.0a inputs, loop through and outputs along with BNC connections for reference. You also get 2 channel consumer HiFi and XLR connectors for 4 channels of AES/EBU or 2 channels of balanced analog audio. That makes Teranex AV perfect for presenters wearing lavalier mics or using laptop computer audio because the audio can be embedded with the video on any output! There's even an optical fiber cage for adding optional modules so you can send video and audio over massive distances! If you only need SDI, you can use Teranex Express, which features all 12G-SDI connections!

Video Control
Adjust color, aspect ratio and more!
Now you can quickly and easily find the tools you need to correct color, convert formats or change aspect ratio! Teranex converters feature a logically designed front panel and soft menus so you can adjust luminance, saturation, hue, black level, R-Y/B-Y color difference, sharpness and more with the built in proc amp controls. The integrated LCD screen on the front panel lets you make adjustments with confidence during live broadcasts, events and presentations.

Ancillary Data
Multi channel audio, timecode and subtitles
Video includes a lot more than images and Teranex supports conversion of up to 16 audio channels plus timecode and closed caption VANC data. Teranex converters are also compatible with Dolby encoded audio, so it never has to be decoded or re-encoded during up and down conversions. With Teranex converters, your subtitles are always retained and both audio and timecode always stay in perfect sync with your video!

Teranex AV
Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex's patented algorithms and legendary image quality. Teranex AV offers low latency and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal.

Advanced Media is BLACKMAGIC DESIGN authorized reseller. Contact Advanced Media Dubai for Blackmagic Design Teranex AV
