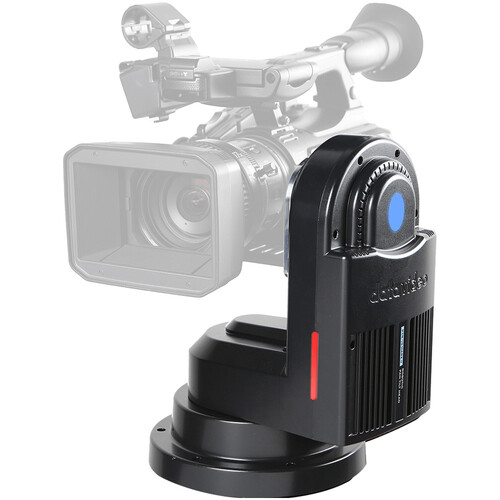

Datavideo PTR-10 MK II Robotic Pan Tilt Head (DVIP)

Datavideo PTR-10 MK II Robotic Pan Tilt Head (DVIP)

More than just a motorized head, the PTR-10 MK II interfaces with PTZ-compatible control systems, allowing you the same kind of experience. From pan and tilt control to powering your camera and controlling its zoom lens via LANC or other protocols, this head is a compact PTZ solution for cameras weighing up to 8 lb.

The head easily mounts to most tripod legs and with an optional bracket, it can be mounted on a wall or ceiling. It can send your camera's video output to external video displays, switchers, and controllers such as the RMC-180 series or RMC-300A while also receiving control information for pan and tilt operations via VISCA, DVIP, RS-422, or an included IR remote control. The head is equipped with LED indicators, a tally light, and a remote port that allows you to adjust the zoom and focus of select camera lenses. It is powered by the included 12 VDC power adapter and can supply power to the attached camera or accessories, using its D-Tap output with selectable power voltage and includes a D-Tap to lockable camera power connector for use with a variety of Datavideo block cameras.

• Multiple signal interfaces such as 3G-SDI, HDMI, RS-232, RS-422, tally, and LANC
• Sturdy aluminum construction
• Camera pan, tilt, and zoom control
• RS-232, RS-422, VISCA, DVIP, and IR remote control
• Compatible with RMC-180 and RMC-300A controllers
• Built-in tally light
• Ideal for live events
• Zoom control support for Datavideo block cameras and other cameras
• Control a variety of Sony, Panasonic, Canon, and JVC cameras
• D-Tap power output to power camera and accessories
• DIP switch to change D-Tap voltage
• Plate with 1/4"-20 thread for camera mounting

Advanced Media is DATAVIDEO authorized distributor. Contact Advanced Media Dubai for Datavideo PTR-10 MK II Robotic Pan Tilt Head (DVIP)
