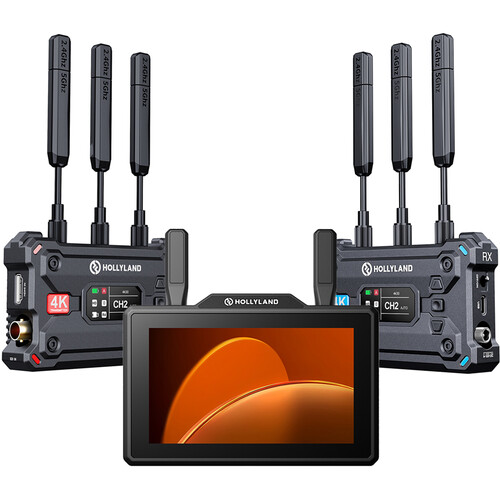

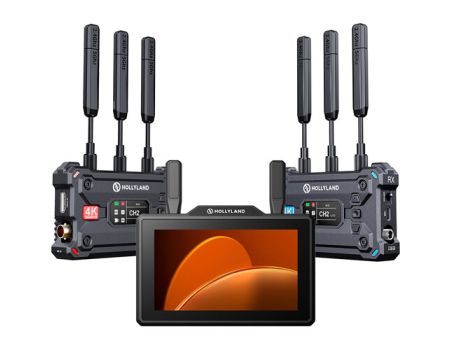

- Pyro 5 Transceiver Monitor -
Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording, real-time overlays, and RTMP live streaming make Pyro 5 more than just a monitor-it's your multi-tasking hub on set, built to simplify and speed up every step of production.
WifiBroadcast Technology
Shoot. Sync. Share.
Pyro 5 is a 5.5-inch wireless monitor designed for flexible on-set collaboration. Powered by cutting-edge Wi-Fi-Broadcast technology, it allows one transmitter to connect with up to four receivers while maintaining stable, real-time video transmission.
Broadcast Mode
Activated
In Broadcast Mode, one transmitter connects to up to four receivers with intelligent camera views switching and auto frequency hopping. Ideal for multi-cam setups, it delivers stable performance at up to 200m line-of-sight or 100m back-to-back.
Deactivated
Pyro 5 still supports one-to-four transmission even when Broadcast Mode is off. At the same time, it offers a more extended range, up to 400m line-of-sight and 150m back-to-back.
Dual-Band
Stronger Signal. Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5 automatically adapts to changing environments-delivering robust, interference-resistant video even in signal-heavy locations.
Direct Camera Control. Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, Trigger and ISO, offering dynamic control over your camera's settings.
More Than a Monitor. Efficient Proxy Recording.
Proxy files can be recorded directly to an SD card or USB drive while monitoring in real time. Automatically organized into folders, proxy files are ready to review or cut. The Proxy files now include timecode, perfectly synced with your camera for easier, more accurate editing.
Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.
Shoot Bright. See Brighter.
The 1500-nit screen stays bright and readable, even in the most challenging outdoor lighting.
Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Smart Channel Selection
At startup, the system automatically scans and locks onto the optimal frequency channel. Channels can also be manually scanned and switched via the receiver, with visual signal strength indicators for each frequency.
Take Control of Your Image Flow.
Choose between high-fidelity visuals or ultra-low latency-whichever suits your shoot best.
• HD Mode: Delivers stunning clarity with a 12 Mbps bitrate and a minimum latency of 75ms. Ideal for critical image monitoring
• Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission
Note: All performance figures are from Hollyland laboratory tests and may vary with real-world conditions.
Precision Meets Ease
Image Analysis.
Advanced image analysis tools-now more accurate, more user-friendly, and made for fast decision-making on set.
HDMI & SDI Port
Connect to What You Need. With both HDMI and SDI loopout, Pyro 5 fits seamlessly into a wide range of production setups.
Lock Pairing.
When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter-no signal mix-ups.
Built to Feel Good. Made to Last.
A dual-injection shell keeps the device light in hand and strong enough to handle the roughest shoots. The Easy-install antennas make setup, transport, and storage faster and easier than ever. Every detail is designed for the field-from the rugged build to the streamlined setup.
Go Live, Anywhere.
RTMP Streaming
Stream directly to Zoom, YouTube Live, TikTok, and more with the HollyView App and RTMP support. Just connect a 4G LTE Wi-Fi modem, enter your stream key, and you're live-no extra setup needed.
- Pyro S Video Transmission System -
Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S's magnesium alloy shell makes it easier to carry and handle. It's ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.
• 1 Transmitter to 4 Receivers
• Up to 1,300' (400m)
• 0.05s Low Latency
• 2.4GHz & 5GHz Dual Band
• Auto Frequency Hopping
• HDMI & SDI
• Multiple Power Supply Options
• UVC Streaming
• 4K30 Transmission
• Ready Out of the Box
4 Receivers. Not an Issue
Pyro S's Wi-Fi Broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Note: When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
Faster. Longer. Stronger
With self-developed 2.4GHz & 5GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boost: From Delay to Distant Stability
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
You can select these two modes according to your application needs:
• Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission
• HD Mode: Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m)
Auto Dual-Band Hopping (ADH)
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4GHz and 5GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
2.4GHz & 5GHz Dual Band
Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you won't have to worry about video drop issues anymore.
Auto Frequency Hopping
Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Both HDMI and SDI Input/Output
Pyro S is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.
4K. Crisp and Sharp
With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.
UVC Streaming
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
RTMP Streaming
With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your wireless network card to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro S will offer you a straightforward and convenient live streaming experience.
Smart Channel Scan
Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Easy Setup. Ready to Go
Pyro S supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
