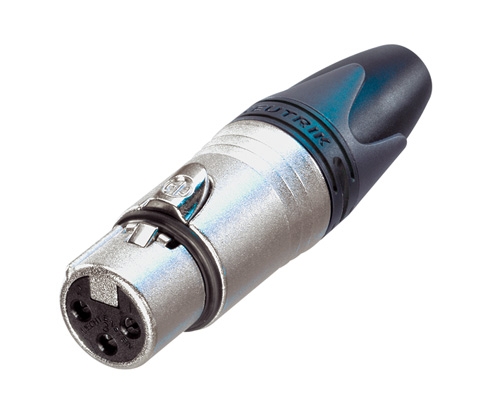

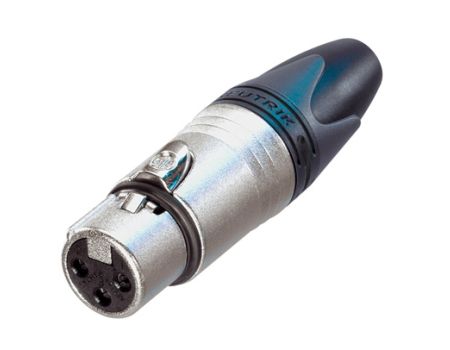

NEUTRIK XLR CABLE CONNECTOR FEMALE 3POLE
3 pole female cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Contact resistance: ≤ 3 mΩ (inner)
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: 50 V
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime> 1000 mating cycles
Wiresizemax. 2.5 mm²
Wiresizemax. 14 AWG
Locking device: Latch lock
Sealing jacket: EPDM
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
