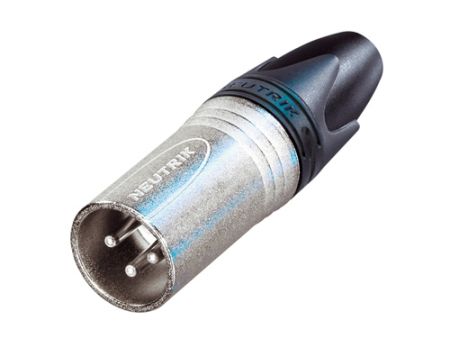

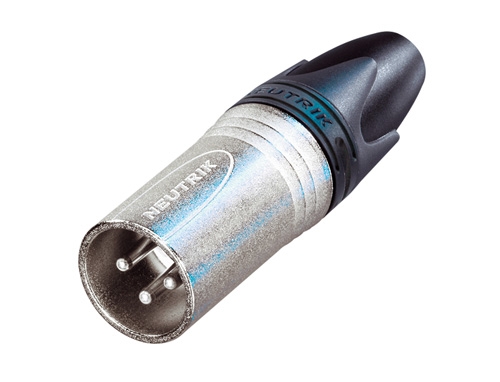

NEUTRIK XLR CABLE CONNECTOR MALE 3POLE

SKU
NC3MXX
Brands:

EXPECTED DELIVERY : 3-4 Weeks

AED 20.00
Add to Wish List
Shipping Calculator
Fast Delivery within UAE
NEUTRIK XLR CABLE CONNECTOR MALE 3POLE

NEUTRIK XLR CABLE CONNECTOR MALE 3POLE

Add to Wish List

NEUTRIK XLR CABLE CONNECTOR MALE 3POLE

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Boot with polyurethane gland gives high protection to cable bending stresses

NEUTRIK XLR CABLE CONNECTOR MALE 3POLE

3 pole male cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

More Information
Standards

Connection: TypeXLR

Gender: male

Electrical
Capacitance between contacts: ≤ 4 pF

Contact resistance: ≤ 3 mΩ (inner)

Dielectric strength: 1,5 kVdc

Insulation resistance: > 2 GΩ (initial)

Rated current per contact: 16 A

Rated voltage: 50 V

Mechanical
Cable O.D.3.5 - 8.0 mm

Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N

Lifetime> 1000 mating cycles

Wiresizemax. 2.5 mm²

Wiresizemax. 14 AWG

WiringSolder contacts

Locking device: Latch lock

Sealing jacket: EPDM

Material
Boot: Polyurethan

Contact plating: 0.2 µm Au hard alloy over 2 µm Ni

Contacts: Brass (CuZn39Pb3)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Black chromium
Strain relief: Polyacetal (POM)
