RED DSMC2 BASE EXPANDER

SKU
720-0033
116

EXPECTED DELIVERY : 1-2 Weeks

2024-12-11
AED 6,775.00
AED 7,113.75
Add to Wish List
Shipping Calculator
visa mastercard tabby

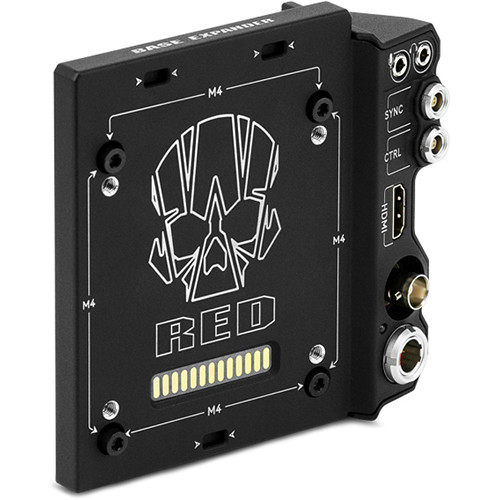

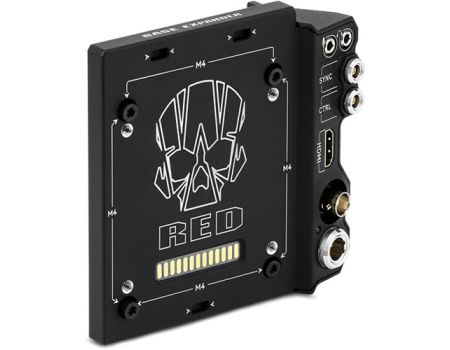

RED DSMC2 BASE EXPANDER

RED DSMC2 BASE EXPANDER

Add to Wish List
  • For WEAPON 8K S35, WEAPON 6K
  • For EPIC W, SCARLET W, RED RAVEN
  • Provides SDI & HDMI Output Connectors
  • Connector for Genlock/Timecode/Sync In
  • Provides Battery Module Connector

The DSMC2™ Base Expander is an ideal connector module for the general user’s Input/Output (I/O) needs. Manufactured from lightweight and durable magnesium, this low-profile module mounts directly to your DSMC2 BRAIN® and offers interface connections for power (DC IN), HDMI, 3G-SDI (HD-SDI), CTRL and SYNC ports (for Timecode and Genlock), as well as a 3.5mm microphone input and a 3.5mm line-level headphone out.

The DSMC2 Base Expander also offers rear-mounting support for the camera system-compatible battery and power modules, such as the DSMC2 REDVOLT XL Module. The low profile DSMC² Base Expander offers a variety of connectors and is ideal for run-and-gun and independent shooters.

NOTE: Only one (1) expander module can be used at a time.

Advanced Media is RED authorized distributor. Contact Advanced Media Dubai for RED DSMC2 BASE EXPANDER!

More Information
SPECS:

DSMC2 Base Expander

Dimensions Height: 4.57 in. (116 mm)
Width: 4.76 in. (121 mm)
Depth: 1.50 in. (38 mm)
Weight 0.45 lbs (203 g)
Material Magnesium
BRAIN Mounting 4x M4 captive mounting screws
BRAIN Connections Power delivery via DSMC2 Rear pogo connector (13-Pin)
Communication via DSMC2 Rear I/O connector (4×40 Pin)
Connectors DC IN (6-Pin 1B LEMO socket)
3G-SDI output (75 Ω BNC), 60 Hz max frame rate
HDMI 1.2 output (Type A socket), 60 Hz max frame rate
SYNC (Genlock IN / Timecode IN / Sync IN) (4-Pin 00B LEMO socket)
CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00BLEMO socket)
Stereo Analog Microphone input (3.5mm jack)
Stereo Headphone output (3.5mm jack)
Battery Module Connections Power delivery via DSMC2 Rear pogo connector (13-Pin)
Audio 24-bit, 48 KHz, uncompressed, unbalanced mic level
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature –20°C to 50°C (–4°F to 122°F)
Operating Humidity 0% to 85%, non-condensing
Storage Humidity 0% to 85%, non-condensing
Firmware Requirement Compatible with all DSMC2 firmware versions

RED DSMC2 BASE EXPANDER
