RED DSMC2 V-LOCK I/O EXPANDER

SKU
720-0045
Brands:
In stock
AED 7,750.00
Add to Wish List
Shipping Calculator
Fast Delivery within UAE
RED DSMC2 V-LOCK I/O EXPANDER

RED DSMC2 V-LOCK I/O EXPANDER

Add to Wish List

RED DSMC2 V-LOCK I/O EXPANDER

  • DC Power input
  • Auto Boot-Up on Power-On
  • 3G-SDI, HDMI 1.2 Output
  • Control & Sync Ports
  • USB Power Output
  • AUX Power Output
  • Stereo Analog Input
  • Stereo Headphone Output
  • FOR WEAPON 8K S35, WEAPON 6K
  • For EPIC/SCARLET-W, RAVEN

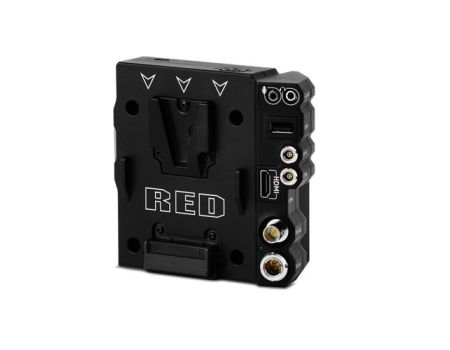

The DSMC2™ V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your DSMC2 camera using RED BRICK® batteries. Constructed from lightweight and durable magnesium, this expander module mounts directly to the rear of the camera BRAIN® and offers connections for the following:

• DC Power input (DC IN)
• HDMI 1.2 output (Type A socket)
• 3G-SDI output (HD-SDI, 75 Ω BNC)
• CTRL & SYNC ports (2x 00B LEMO 4-Pin, Timecode and Genlock support)
• AUX Power output (P-Tap 2-Pin female)
• USB Power output (Type A, 5 V at 1.5 A for powering HDMI transmitters or small mobile devices)
• Stereo Headphone output (3.5 mm jack)
• Stereo Analog input (3.5 mm jack)

The DSMC2 V-Lock I/O Expander also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC IN connector on the expander. This feature allows you to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver locations.

This expander is an ideal solution for a wide variety of production environments—from low-profile run-and-gun situations to studio shoots that require mobility.

NOTE: The DSMC2 Top Handle is NOT fully compatible with the DSMC2 Base I/O V-Lock Expander, as the top handle will interfere with the battery when one is attached to the expander module.

Advanced Media is RED authorized distributor. Contact Advanced Media Dubai for RED DSMC2 V-LOCK I/O EXPANDER

More Information
SPECS:

DSMC2 V-Lock I/O Expander

DIMENSIONS Height: 4.57 in. (116.0 mm)
Width: 4.94 in. (125.5 mm)
Depth: 2.25 in. (57.2 mm) (connected to BRAIN)
WEIGHT 1.0 lb (454 g)
MATERIAL Magnesium
BRAIN MOUNTING 4x M4 captive mounting screws
BRAIN CONNECTIONS Power delivery via Rear pogo connector (13-Pin)
Communication via Rear I/O connector (4×40 Pin)
CONNECTORS DC IN (6-Pin 1B LEMO socket)
3G-SDI output (75 Ω BNC), 60 Hz max frame rate
HDMI 1.2 output (Type A socket), 60 Hz max frame rate
SYNC (Genlock IN / Timecode IN / Sync IN) (4-Pin 00B LEMO socket)
CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00BLEMO socket)
USB Power output (Type A socket), 1.5A
P-Tap Aux Power output (2-Pin), 3.0A
Stereo Analog Microphone input (3.5mm jack)
Stereo Headphone output (3.5mm jack)
AUTO BOOT ON POWER 2-position slider switch
BATTERY COMPATIBILITY RED BRICK
AUDIO 24-bit, 48 KHz, uncompressed, unbalanced mic level
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing
FIRMWARE REQUIREMENT Compatible with all DSMC2 firmware v6.2.17 or later.
