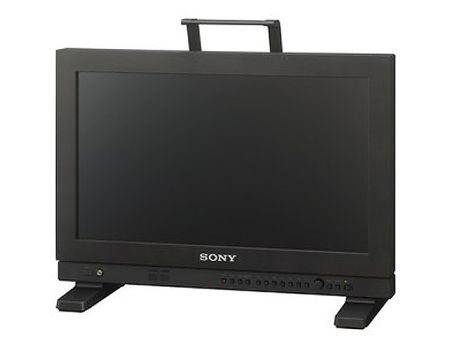

Sony LMD-A170 17" LCD Production Monitor



AED 9,799.00
AED 10,288.95
Add to Wish List
Shipping Calculator
Fast Delivery within UAE
Sony LMD-A170 17

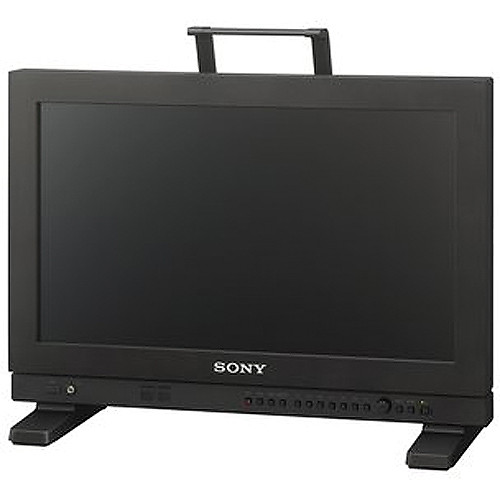

Sony LMD-A170 17" LCD Production Monitor

Add to Wish List
  • 16.5" Diagonal Screen Size
  • 1920 x 1080 Native Resolution
  • Supports 1080/60p Video Signals
  • 2x 3G/HD/SD-SDI Inputs
  • SDI Inputs with Active Loop Through
  • HDMI and Composite Inputs

Sony LMD-A170 17" LCD Production Monitor - is a portable, 1920 x 1080 resolution monitor for on set, studio, and broadcast use. The monitor features an IPS LCD display with wide 178° horizontal and vertical viewing angles and provides 3G/HD/SD-SDI, HDMI, and composite inputs, which support NTSC/PAL, 720p, 1080i, and 1080p input signals with frames rates from 24p to 60p.

The monitor introduces several new features and upgrades from previous LMD series monitors, including a new low latency automatic I/P conversion, new video processing engine for improved image accuracy, on screen tally, and yoke mounting screw holes. The monitor also provides a wide range of professional monitoring features, such as built-in waveform and vectorscope, focus assist with adjustable colored peaking, time code display, and a Slog2 to Rec 709 LUT.

A built-in audio decoder lets you display up to 16 channels of embedded SDI audio. Audio can be monitored using the 3.5mm headphone jack on the front panel, or with the 1W built-in speaker. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. Two Ethernet ports provide connectivity for serial and parallel remotes; letting you control and load monitor settings via your network, as well as upgrade the monitor's software. For use in the field, there is a 12V DC power input on 4-pin XLR.

Advanced Media is SONY authorized distributor. Contact Advanced Media Dubai for Sony LMD-A170 17" LCD Production Monitor..

More Information
Backlight Technology LED
Screen Size (Diagonal) 16.5" (42.2 cm)
Effective Picture Size (H x V) 14.40 x 8.10" (36.58 x 20.57 cm)
Resolution 1920 x 1080
Native Aspect Ratio 16:9
Viewing Angle (H/V) 178° / 178°
Normal Scan 0% scan
Color Temperature D65, D93
Warm-Up Time Approx. 30 minutes
Video Input 2 x BNC, 3G/HD/SD-SDI
1 x HDMI, HDCP compliant
1 x BNC, Composite (NTSC/PAL)
Audio Input 1 x Stereo mini jack, -5 dBu 47 kohm or higher
Power Input 1 x XLR 4-pin (male), 12 to 17 VDC (output impedance 0.05 ohm or less)
Remote Control 1 x Parallel remote, RJ-45 modular connector 8-pin
1 x Serial remote, RJ-45 modular connector (ETHERNET, 10BASE-T/100BASE-TX)
Video Output 2 x BNC, 3G/HD/SD-SDI, Output signal amplitude: 800 mVp-p ±10%
Output impedance: 75 ohm unbalanced

1 x BNC, Composite (NTSC/PAL) loop-though, 75 ohm automatic terminal function
Audio Output 1 x Stereo mini jack, audio monitor output
1 x Stereo mini jack, headphone output
1 x 1.0 W monaural speaker
Video Signals
Formats 3G-SDI (10-bit 4:4:4 YCbCr and 4:4:4 RGB supported)
1080PsF 24/25/30
1080p 24/25/30/
1080i 50/60
720p 50/60

3G-SDI (10-bit 4:2:2 YCbCr supported)
1080p 50/60

1080PsF 24/25
1080p 24/25/30
1080i 50/60
720p 24/25/30/50/60
575/50i (PAL)
480/60i (NTSC)

1080p 24/25/30/50/60
1080i 50/60
720p 50/60
575/50i (PAL)
480/60i (NTSC)

Note: 1080/25PsF, 30PsF are displayed as 1080/25PsF, 30PsF on the screen if the payload ID is added to the video signal, or displayed as 1080/50i, 60i if the ID is not added.
PC Signal Compatibility HDMI input:
640 x 480: 25.175 MHz, fH 31.5 kHz, fV 60 Hz
1280 x 768: 68.25 MHz, fH 47.4 kHz, fV 60 Hz
1280 x 1024: 108 MHz, fH 64 kHz, fV 60 Hz
1360 x 768: 85.5 MHz, fH 47.7 kHz, fV 60 Hz
1440 x 900: 88.75 MHz, fH 55.5 kHz, fV 60 Hz
1680 x 1050: 119 MHz, fH 64.7 kHz, fV 60 Hz
Power 100 to 240 VAC, 0.5 to 0.4 A, 50/60 Hz
12 to 17 VDC (4-pin XLR)
Power Consumption Approx. 49 W (max.)
Approx. 42 W (average power consumption in the default status)
Inrush Current Maximum possible inrush current at initial switch-on (voltage changes caused by manual switching):
45 a peak, 5 A r.m.s (240 VAC)

Inrush current after a mains interruption of 5 seconds (voltage changes caused at zero-crossing):
15 A peak, 3 A r.m.s. (240 VAC)
