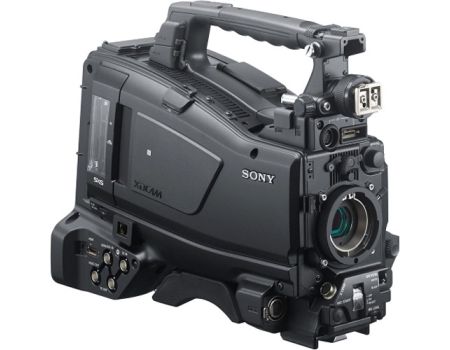

Sony PXW-X400 Shoulder Camcorder Body

SKU
PXW-X400
Brands:
1

EXPECTED DELIVERY : 3-4 Weeks

AED 52,000.00
AED 54,600.00
Add to Wish List
Shipping Calculator
Fast Delivery within UAE
Sony PXW-X400 Shoulder Camcorder Body

Sony PXW-X400 Shoulder Camcorder Body

Add to Wish List
  • High quality XAVC Long GOP recordings at 50p and 59.94p operations. The PXW-X400 supports a variety of codecs from SD to HD, including MPEG HD 422 50 Mbps in MXF (Material eXchange Format), which is widely accepted by major broadcasters worldwide, and XAVC Intra frame and XAVC Long GOP codecs.

The PXW-X400 is an advanced shoulder camcorder that records a variety of professional broadcast quality formats including XAVC-L at 50p and 59.94p. The camcorder offers exceptional weight balance and low power consumption alongside excellent networking features and high picture quality. The reengineered design dramatically reduces the load on the operator’s right-arm. It supports Sony viewfinders including the QHD LCD CBK-VF02 and optionally available Full HD OLED HDVF-EL30 and HDVF-EL20. The camcorder also offers improved network connectivity, with built-in wireless module, embedded RJ-45 Ethernet 100B-T connector and Near Field Communication (NFC) function** for easy Wi-Fi setup and operation via a mobile or tablet with Sony’s Content Browser Mobile™ application. SD or HD-SDI (up to 1.5G) input supports pool feed recording.

Full HD XAVC-L 50p and 59.94p operations
Supports variety of formats including XAVC-Long GOP at 50p and 59.94p.

Low power and ergonomic design
Designed to minimise power consumption, while lighter lens grip reduces front weight and helps reduce the load on the right-arm.

Improves network connectivity
Connectivity features include built-in wireless module, RJ-45 Ethernet 100B-T connection and NFC function for easy Wi-Fi setup. The camcorder’s SDI input allows SD-SDI or HD-SDI pool feed recording up to 1.5Gbps.

PXW-X400KC - 20X Manual Focus Lens Kit Model
Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with improved network connectivity and low power consumption, plus 20x manual focus zoom lens kit.

The PMW-X400KC camcorder kit is supplied with a 20x manual focus zoom lens kit that includes the 3.5-inch LCD viewfinder plus short gun stereo microphone.

PXW-X400KF - 16X Auto Focus Lens Kit Model
Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with improved network connectivity and low power consumption, plus 16x auto focus zoom lens kit*

The camcorder is supplied with a 16x auto focus zoom lens kit that includes a 3.5-inch LCD viewfinder, plus shot gun stereo microphone.
* The auto focus function is available June 2016.

PXW-X400 – customizable model
Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with improved network connectivity and low power consumption.

This camcorder is supplied without Zoom lens, without viewfinder and microphone, allowing full customization of the camcorder.

Advanced Media is SONY authorized distributor. Contact Advanced Media Dubai for Sony PXW-X400 Shoulder Camcorder Body..

More Information
Maximum Recording Time
Recording Format (Video) XAVC Intra:
  XAVC-I mode:
  MPEG-4 AVC/H.264, CBG, Max.112 Mbps
  XAVC Long:
  XAVC-L 50 Mode:
  MPEG-4 AVC/H.264, VBR, Max. 50 Mbps
  XAVC-L 35 Mode:
  MPEG-4 AVC/H.264, VBR, Max. 35 Mbps
  XAVC-L 25 Mode:
  MPEG-4 AVC/H.264, VBR, Max. 25 Mbps
  MPEG HD422:
  HD422 mode: MPEG-2 422P@HL, CBR, Max.50 Mbps
  MPEG HD:
  HQ mode: MPEG-2 MP@HL, VBR, Max.35 Mbps
  MPEG IMX: *2
  MPEG-2 422@ML, CBR, 50 Mbps
  DVCAM:
  CBR, 25 Mbps

Recording Format (Audio) XAVC Intra: LPCM 24 bits, 48 kHz, 4 channels
  XAVC Long: LPCM 24 bits, 48 kHz, 4 channels
  MPEG HD422: LPCM 24 bits, 48 kHz, 4 channels
  MPEG HD: LPCM 16 bits, 48 kHz, 4 channels
  MPEG IMX: LPCM 16/24 bits, 48 kHz, 4 channels *2
  DVCAM: LPCM 16 bits, 48 kHz, 4 channels

Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
  1280 720, 9 Mbps (Target Rate)
  1280 720, 6 Mbps (Target Rate)
  640 360, 3 Mbps (Target Rate)
  480 270, 1 Mbps, 500 kbps (Target Rate)

Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording/Playback Time (XAVC Intra, XAVC Long) XAVC-I mode:
  Approx. 120 min. with 128 GB SxS card*5
  Approx. 60 min. with 64 GB SxS card*5
  Approx. 30 min. with 32 GB SxS card*5
  XAVC-L 50 mode:
  Approx. 240 min. with 128 GB SxS card*5
  Approx. 120 min. with 64 GB SxS card*5
  Approx. 60 min. with 32 GB SxS card*5
  XAVC-L 35 mode:
  Approx. 340 min. with 128 GB SxS card*5
  Approx. 170 min. with 64 GB SxS card*5
  Approx. 85 min. with 32 GB SxS card*5
  XAVC-L 25 mode:
  Approx. 440 min. with 128 GB SxS card*5
  Approx. 220 min. with 64 GB SxS card*5
  Approx. 110 min. with 32 GB SxS card*5

Recording/Playback Time (MPEG-2 HD422/HD420) MPEG HD422 mode:
  Approx. 240 min. with 128 GB SxS card*5
  Approx. 120 min. with 64 GB SxS card*5
  pprox. 60 min. with 32 GB SxS card*5
  MPEG HD420 HQ mode:
  Approx. 360 min. with 128 GB SxS card*5
  Approx. 180 min. with 64 GB SxS card*5
  Approx. 90 min. with 32 GB SxS card*5

Recording/Playback Time (MPEG IMX 50M) Approx. 240 min. with 128 GB SxS card*2 , *5
  Approx. 120 min. with 64 GB SxS card*5
  Approx. 60 min. with 32 GB SxS card*5

Recording/Playback Time (DVCAM) Approx. 440 min. with 128 GB SxS card*5
  Approx. 220 min. with 64 GB SxS card*5
  Approx. 110 min. with 32 GB SxS card*5

Recording Frame Rate XAVC Intra (XAVC-I mode):
  1920 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
  1280 720: 59.94p, 50p
  XAVC Long (XAVC-L 50 mode):
  1920 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
  1280 720: 59.94p, 50p
  XAVC Long (XAVC-L 35 mode):
  1920 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p

Recording Frame Rate XAVC Long (XAVC-L 25 mode):
  1920 1080: 59.94i, 50i
  MPEG HD422:
  1920 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
  1280 720: 59.94p, 50p, 29.97p, 25p, 23.98p
  MPEG HD420:
  1920 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
  1440 1080: 59.94i, 50i
  1280 720: 59.94p, 50p
  MPEG IMX: *2
  720 486: 59.94i
  720 576: 50i
  DVCAM:
  720 480: 59.94i
  720 576: 50i
Advanced Features
Imaging System Sensor
Super 35mm Single-Chip 11.6MP Exmor CMOS

Included Lens
Focal Length: 18 to 105mm (comparable 35mm Focal Length: 27 to 158mm)
Iris: f/4 to f/22
Angle of View: 77.4 to 15.6°
Minimum Focus Distance: 1.48' / 45 cm
Image Stabilization: Yes
Autofocus: Yes
Filter Thread: 72mm
Dimensions (D x L): Approx. 3.07 x 4.33" / 7.8 x 11 cm
Weight: 15.06 oz / 427 g
Effective Picture Size (H x V) 3840 x 2160
LCD Monitor 3.5" / 8.8 cm
Approx: 1.56M dots
Viewfinder 0.39" / 0.99 cm OLED
Approx: 1.44M dots
ND Filter Variable: 1/4 to 1/128
Presets: Clear, 1/4, 1/26, 1/64
Sensitivity ISO Rating: 3200 (S-Log3 Gamma)
Lux: 2000 lx, 89.9% reflectance
Video Gamma: T14(3840 x 2160 @ 23.98p mode, 3200K)`
Min. Illumination 60i: 0.16 lx (iris f/1.4, gain auto, shutter speed 1/24)
50i: 0.18 lx (iris f/1.4, gain auto, shutter speed 1/25)
S/N Ratio 57 db (Y) (typical)
Recording Format XAVC Long
100Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
60Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080p 59.94 / 50 / 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080i 59.94 / 50
50Mb/s: 1280 x 720p 59.94 / 50
35Mb/s: 1920 x 1280p 59.94 / 50 / 29.97 / 25 / 23.98
25Mb/s: 1920 x 1080i 59.94 / 50

XAVC Proxy
H.264 / AVC
4:2:0 8-bit
MP4 wrapper
1280 x 720: 3 to 6Mb/s
640 x 360: 1 to 3Mb/s

AVCHD
28Mb/s (PS): 1920 x 1080p 59.94 / 50
24Mb/s (FX): 1920 x 1080p 29.97 / 25 / 23.98
24Mb/s (FX): 1920 x 1080i 59.94 / 50
24Mb/s (FX): 1280 x 720p: 59.94 / 50
17Mb/s (FH): 1920 x 1080p 29.97 / 25 / 23.98
17Mb/s (FH): 1920 x 1080i 59.94 / 50
17Mb/s (FH): 1280 x 720p: 59.94 / 50
9Mb/s (HQ): 1280 x 720p: 59.94 / 50
Audio Recording Format XAVC Long
Linear PCM 2 ch, 24-bit, 48kHz

AVCHD
Linear PCM 2 ch, 16-bit, 48kHz
Dolby digital 2ch, 16-bit, 48kHz
Shutter Speed 60i: 1/8 to 1/10,000
50i/24p:1/6 to 1/10,000
Gain Selection 0, 3, 6, 9, 12, 15, 18, 24,27, 30dB, AGC
Gamma Curve Selectable
White Balance Preset
Memory A
Memory B (1500K-50000K)/ATW
Slow & Quick Motion Function 3840 x 2160 30p: Frame rate selectable 1, 2, 4, 8, 15, 30
3840 x 2160 25p: Frame rate selectable 1, 2, 3, 6, 12, 25
1920 x 1080 60i: Frame rate selectable 1, 2, 4, 8, 15, 30, 60
1920 x 1080 50i: Frame rate selectable 1, 2, 3, 6, 12, 25, 50
Super Slow Motion 60i: Frame rate selectable ( 120, 240, 480, 960)
50i: Frame rate selectable ( 100, 240, 400, 800)
WiFi Compatible Format: IEEE 802.11 b/g/n
Frequency Band: 2.4 GHz
Security: WEP / WPA-PSK / WPA2-PSK
NFC: NFC Forum Type 3 Tag Compliant
Media Card Slots 1 x MS/SD (dual Memory Stick/SD)
1 x SD
Input and Output Connectors Audio Input
2 x 3-pin XLR
Line/mic/mic +48
SDI Output
1 x BNC HD/3G-SDI
SMTPE292M/424M/425M

HDMI 2.0
1 x Type A

USB
1 x Multi/Micro (composite video integrated into Multi/Micro USB jack)

Headphone
1 x Stereo mini jack

Remote
Stereo mini jack (Φ2.5 mm)

Wired LAN
1 x RJ-45 (100Base-TX/10Base-T
Accessory Shoe Multi-Interface (MI) shoe
Power Requirement Battery Pack: 14.4 VDC
AC Adapter: 12 VDC
Power Consumption NTSC: Approx 11.8W
PAL: Approx 11.5W
Note: While recording with LCD on, EVF off, when external device connector is not used.
Temperature Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C)
Dimensions Body Only: 4.50 x 5.13 x 6.88" / 11.43 x 13.02 x 17.46 cm (approx)
Body, Lens & Accessories: 7.38 x 8.63 x 6.88" / 18.73 x 21.91 x 17.46 cm (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)

Sony PXW-X400 Shoulder Camcorder Body
