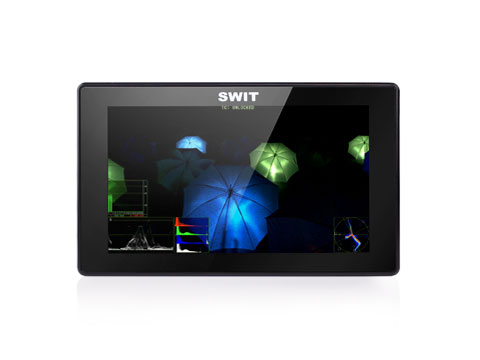

SWIT 5.5-inch FHD Waveform LCD Monitor

SKU
S-1053F
Brands:

EXPECTED DELIVERY : 1-2 Weeks

AED 2,199.00
Add to Wish List
Shipping Calculator
Fast Delivery within UAE
SWIT 5.5-inch FHD Waveform LCD Monitor

SWIT 5.5-inch FHD Waveform LCD Monitor

Add to Wish List
  • 5.5” LCD, 1920×1080 full HD
  • Optical bonding LCD panel
  • All metal housing, thinner and robust
  • 2K/3G/HD/SD-SDI input and loop out
  • HDMI input and converted to SDI out
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vector scope, histogram R/G/B/Y

The S-1053F adopts a 5.5-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1080, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

Advanced Media is SWIT authorized distributor. Contact Advanced Media Dubai for SWIT 5.5-inch FHD Waveform LCD Monitor

More Information
Standards
LCD Performance
Size 5.5 inches
Display area 120.96×68.04mm
Resolution 1920×1080
Aspect ratio 16:9 (4:3 adjustable)
Brightness 400cd/m2
Contrast 1000:1
Color 16.77 million colors
Viewing angle Horizontal: 160°Vertical: 160°
Input
BNC ×1 2K/3G/HD/SD-SDI input
HDMI ×1 HDMI 1.3 input
Micro USB ×1 Firmware upgrade
Output
BNC ×1 2K/3G/HD/SD-SDI loop output or HDMI converted to SDI output
3.5mm ×1 SDI, HDMI embedded audio output
Video Format
SDI SMPTE 2048-2 2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60)
2048×1080i (50 / 59.94 / 60)
SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
HDMI 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
General
Working voltage DC / battery 6.5V-36V
Power consumption 12W
Working temperature -10°C~+50°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 151×91×32mm
Net weight (main body) 375g
