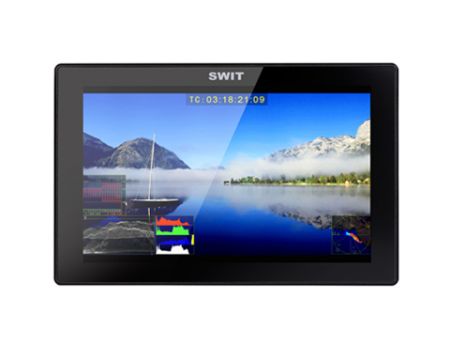

SWIT 7" Full HD Waveform LCD Monitor with NP-F Battery Plate

Add to Wish List
  • 7” optical bonding LCD, 1920×1200
  • All metal housing, thinner and robust
  • 2K/3G/HD/SD-SDI input and loop out
  • HDMI input, loop out, converted to SDI out
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • 9-step quick zoom-in and mapping
  • Red/blue Focus assist and precision adjust
  • Multi-camera logs to Rec709 conversion
  • User 3DLUT cube import via USB stick
  • Waveform, Vector scope, Histogram R/G/B/Y
  • AFD, timecode, H/V delay, Zebra stripes
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • False color, R/G/B/Mono, 100% colorbar
  • GPI control and soft Tally display
  • V / Gold mount and various DV plate install

The S-1073F adopts a 7-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

S-1073F adopts aluminium alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.

S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.

Advanced Media is SWIT authorized distributor. Contact Advanced Media Dubai for SWIT 7" Full HD Waveform LCD Monitor with NP-F Battery Plate

Foldable sun hood, D-Tap cable, Cold shoe / Screw articulating Arm trestle, DV Battery Plate
