Sony PMW-RX50 SxS Card Recorder

SKU
PMW-RX50
Brands:
1
Out of stock
2024-04-18
AED 17,200.00
AED 18,060.00
Add to Wish List Enquire Now
Shipping Calculator
Fast Delivery within UAE
Sony PMW-RX50 SxS Card Recorder

Sony PMW-RX50 SxS Card Recorder

Add to Wish List Enquire Now
  • *Discontinued
  • XAVC Intra & Long GOP Codec Support
  • Resolutions up to 1920x1080 59.94p/50p
  • MPEG HD422, HD420, IMX, & DVCAM Support
  • Two SxS Card Slots
  • 3.5" LCD Screen
  • 3G-SDI I/O, HDMI Out, i.LINK Interface
  • Detachable XLR Input Audio Box
  • Copy Files to External HDD via USB 3.0

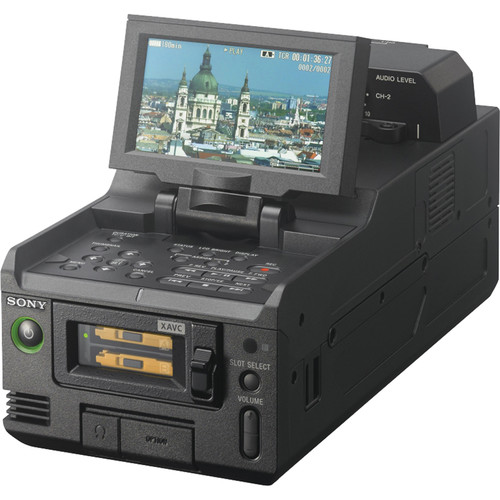

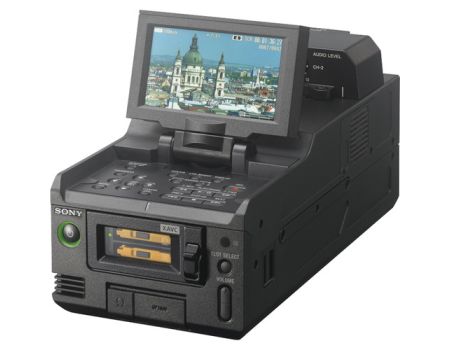

Sony PMW-RX50 XAVC Portable SxS Card Recorder is a compact deck that supports Sony's 10-bit XAVC Intra-frame and Long GOP codecs at resolutions up to 1080 59.94p/50p. To suit a broad range of needs, the deck also supports MPEG HD422, MPEG HD420, and standard definition codecs such as MPEG IMX50 and DVCAM. It features dual ExpressCard 34 media slots, which can be used to record footage from the 3G/HD/SD-SDI input to SxS memory cards. You can also insert SxS cards from your camcorder and use the built-in 3.5" LCD for field review of footage.

In addition to the SDI input, the deck also features a detachable Audio Input Box for inputting and recording two channels of XLR audio. SDI, HDMI, and i.LINK video outputs are provided for monitoring or ingesting footage into your NLE system. There is also a USB 3.0 port for copying clips directly to an external hard drive. To facilitate easy integration into existing workflows, the recorder is powered using the same BP-U series batteries and AC adapters as Sony's XDCAM handheld camcorders. DC output is also provided for the CBK-WA100 mobile network 3G/4G/LTE wireless LAN adapter.

Multi-Format Support
The PMW-RX50 plays and records video using XAVC Intra and Long GOP codecs at resolutions of up to 1920x1080 at 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, and 23.98p, as well as 1280x720 59.94p and 50p. This makes it fully compatible with XAVC camcorders using exFAT/.mxf files. It also supports MPEG HD422, MPEG HD420, MPEG IMX, and DVCAM formats, with the choice of either UDF/MXF mode, which is compatible with existing Professional Disc XDCAM workflows, or FAT/.MP4 mode which is compatible with XDCAM EX workflows.

Advanced Media is SONY authorized distributor. Contact Advanced Media Dubai for Sony PMW-RX50 SxS Card Recorder..

More Information
SPECS:
Recording / Playback
Video Format exFAT
XAVC-I mode: CBG, 223 Mbps max, MPEG-4 AVC/H.264
XAVC-L50 mode: VBR, 50 Mbps max, MPEG-4 AVC/H.264
XAVC-L35 mode: VBR, 35 Mbps max, MPEG-4 AVC/H.264
XAVC-L25 mode: VBR, 25 Mbps max, MPEG-4 AVC/H.264
HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL
HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
DVCAM mode: DVCAM
IMX 50 mode: CBR, 50 Mbps, MPEG-2 422P@ML Intra

UDF
HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL
HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
DVCAM mode: DVCAM
IMX 50 mode: CBR, 50 Mbps, MPEG-2 422P@ML Intra

FAT
HQ mode: VBR, 35 Mbps, MPEG-2 MP@HL
SP mode: CBR, 25 Mbps, MPEG-2 MP@H14
DVCAM mode: DVCAM
Audio Format exFAT
XAVC-I mode: LPCM 24-bit, 48 kHz, 4-channel
XAVC-L50 mode: LPCM 24-bit, 48 kHz, 4-channel
XAVC-L35 mode: LPCM 24-bit, 48 kHz 4-channel
XAVC-L25 mode: LPCM 24-bit, 48 kHz, 4-channel
HD422 mode: LPCM 24-bit, 48 kHz, 4-channel
IMX 50 mode: LPCM 24/16-bit, 48 kHz 4-channel
Other mode: LPCM 16 bit, 48 kHz, 4-channel

UDF
HD422 mode: LPCM 24-bit, 48 kHz, 4-channel
IMX 50 mode: LPCM 24/16-bit, 48 kHz, 4-channel
Other mode: LPCM 16-bit, 48 kHz, 4-channel

FAT
HD mode: LPCM 16-bit, 48 kHz, 4-channel
SD mode: LPCM 16-bit, 48 kHz, 2-channel
Recording/Playback Time exFAT
XAVC-I mode:
Approx. 60 min. with 128 GB memory card
Approx. 30 min. with 64 GB memory card

XAVC-L50 mode:
Approx. 240 min. with 128 GB memory card
Approx. 120 min. 64 GB memory card

XAVC-L35 mode:
Approx. 340 min. with 128 GB memory card
Approx. 170 min. with 64 GB memory card

XAVC-L25 mode:
Approx. 440 min. with 128 GB memory card
Approx. 220 min. with 64 GB memory card

UDF
HD422 mode:
Approx. 120 min. with 64 GB memory card
Approx. 60 min. with 32 GB memory card

HD420 mode:
Approx. 180 min. with 64 GB memory card
Approx. 90 min with 32 GB memory card

DVCAM mode:
Approx. 220 min. with 64 GB memory card
Approx. 110 min. with 32 Gb memory card

IMX 50 mode:
Approx. 120 min. with 64 GB memory card
Approx. 60 min. with 32 Gb memory card

FAT
HQ mode:
Approx. 200 min with 64 GB memory card
Approx. 100 min. with 32 GB memory card

SP Mode:
Approx. 280 min. with 64 GB memory card
Approx. 140 min. with 32 GB memory card

DVCAM mode:
Approx. 260 min. with 64 GB memory card
Approx. 130 min. with 32 GB memory card
Battery Operating Time Approx. 110 min. with BP-U30 battery (while recording, LCD monitor On)
Approx. 220 min. with BP-U60 battery (while recording, LCD monitor On)
Approx. 330 min. with BP-U90 battery (while recording, LCD monitor On)
Media Slot 2 x ExpressCard/34
Inputs/Outputs
SDI Input 1 x 3G/HD/SD-SDI, BNC
SMPTE 424M/292M/259M standards
SDI Output 2 x 3G/HD/SD-SDI, BNC
SMPTE 424M/292M/259M standards
HDMI Output 1 x Type A
Analog Composite Output 1 x BNC
NTSC, PAL, or HD-Y
Analog Audio Output 1 x 1/4" stereo jack
-10 dBu (Reference Level), 47 kohm
Headphone Output 1 x 3.5 mm stereo mini jack
DV I/O (i.LINK) 1 x IEEE 1394, 4-pin
HDV stream input/output, DVCAM stream output, S400
USB 1 x USB, type A (for external hard drive)
1 x USB, mini-B (for PC connection)
DC Input 1 x 12 VDC jack
DC Output 1 x 4-pin for CBK-WA100 (unregulated)
Display
Type 3.5" color LCD
Resolution 960 (H) x 540 (V) x 3 (RGB)
Aspect Ratio 16:9

Sony PMW-RX50 SxS Card Recorder/Player
