SWIT 500ft / 150m SDI/HDMI Wireless System

SWIT 500ft / 150m SDI/HDMI Wireless System

Add to Wish List

SWIT 500ft / 150m SDI/HDMI Wireless System

  • KUWI 5.1-5.9GHz Wireless Technology
  • DFS Comply
  • 3GSDI & HDMI, with 3GSDI loop out
  • 500ft/150m (Line-of-Sight) distance
  • Strong Wall-Cross Performance
  • 2-ch SDI/HDMI audio transmission
  • OLED info and channel switching
  • Support 3-4 pairs working in one location
  • Multicast - 1 transmitter to Max 4 receivers
  • Wireless protocol & content double encryption
  • Reclock and accurate color reproduction

SWIT 500ft / 150m SDI/HDMI Wireless System

KUWI Wireless Technology

SDI&HDMI 500ft / 150m (LOS)
FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

Input & Output

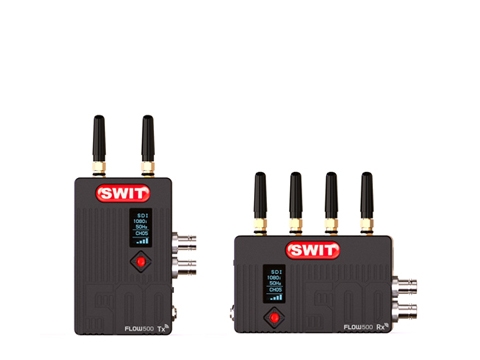

The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input

The Receiver (Rx) has 4 omni antennas, supports
2x 3G/HD-SDI output
1x HDMI 1.3 output

SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

150 meters Transmission
Strong Wall-cross Performance
FLOW500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI embedded audio (CH1&2) transmission.

OLED Display & Channel Switch
DFS comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.
